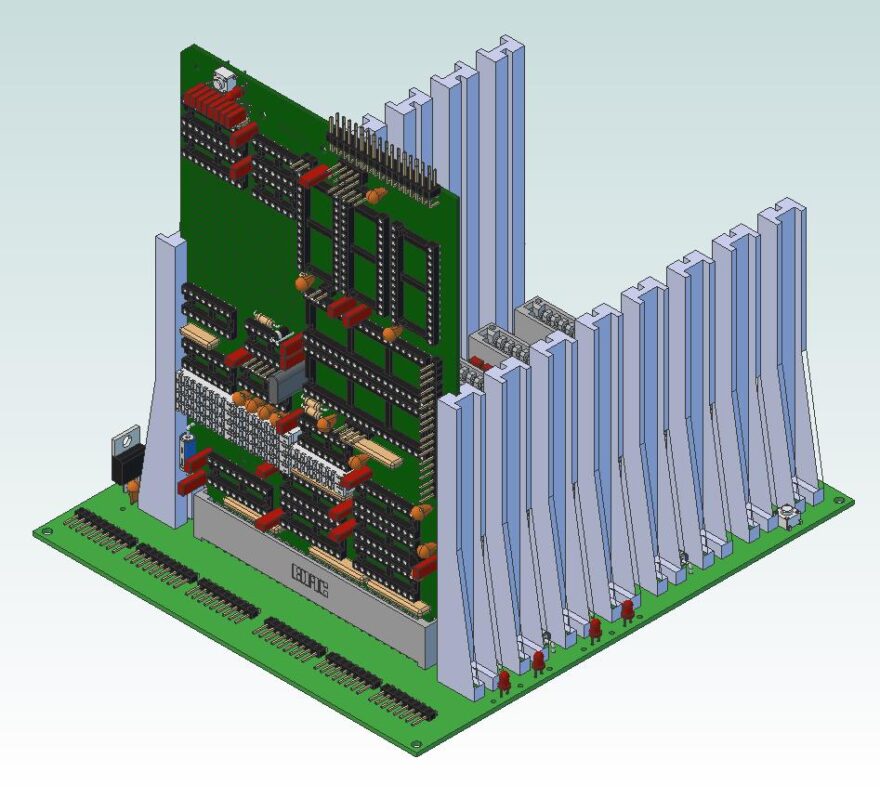

I have dozens of STD Bus backplanes, but as I mentioned in my last post none of them are ideal for when I have a sick card on the workbench. So I am working on an eight-slot STD Bus Backplane that has all the bells and whistles that I personally like.
- 8 slots, STD Bus Standard spacing of 0.75″
- Board mounted card guides
- Bus signals brought out to pin connectors for connection to your favorite bench diagnostic tools
- Barrel connector for +5V input
- Molex connectors for standard AT or XT power supply with +5V, +12V, -5V, -9V, -12V
- Pushbutton reset connected (via resistor) to backplane PBRESET signal
- Onboard Jumpers to connect the STD AUX+ and AUX- to the supply voltages
- LM317 and LM337 Linear voltage regulators to create additional custom voltages for AUX+ and / or AUX-
- Lots of onboard storage and decoupling capacitors for high current boards like disk drives, analog output, rack output, etc.
- Test points and LEDs for standard voltages +5, -5, AUX+, AUX-
- Edge mounted end connector can be installed to allow the card undergoing tests to lay horizontally.
I will be submitting the first version of this card with my next board order, probably sometime this month or next. Let me know if you have particular feature suggestions.
